Page 2 of Pipe Making Directions

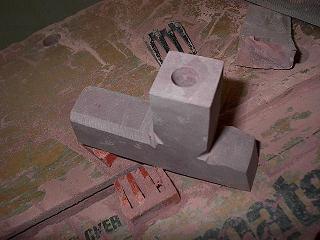

make holes in the blank

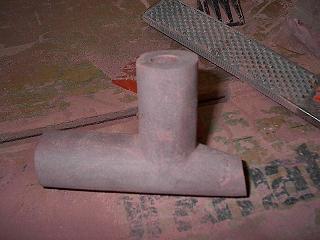

rounded pipe

Mark centers on bowl & shank - drill 1/4" pilot holes - enlarge with 1/2" drill bit. Pipe bowl - enlarge to bottom of pilot hole & shank 1 1/4" for stem.

Make and fit stem* to squared pipe blank. drawing of pipe so far

*directions

Round the pipe bowl using the horse shoe rasp.

drawing of pipe from top

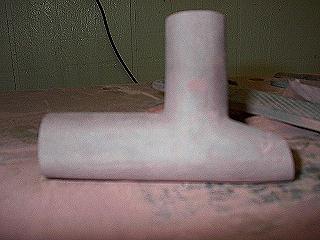

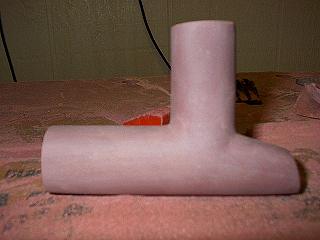

rounded bowl bowl with scratches removed
This bowl is now rounded and has the holes drilled in it. It now needs to be smoothed
Remove deep scratches of horse shoe rasp with 1/2 round file and smoothing file. Sand pipe bowl with sandpaper - course/medium/fine. 400 wet/dry - for a glossy finish.

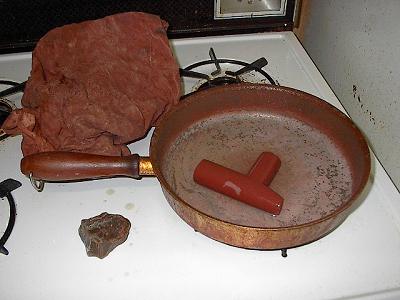

bowl being heated in pan
Polishing with Beeswax
Put 1/4 to 1/2” of water into an old fry pan and place over stove burner.

Place pipe bowl in the fry pan and turn on heat. When you touch the bowl with wax and it readily melts at any point on the bowl, the proper temperature is reached. (Be careful at this point it gets hot!)
Turn heat off. Take bowl out quickly using a cloth. Use a cloth and beeswax to quickly cover the entire bowl with wax.
beeswax
cloth
This cloth has been used by Chuck for about 40 years it was originally a cotton tee shirt but is now crusted with wax. He uses it for every pipe he crafts to move the wax around quickly so that it doesn't set.

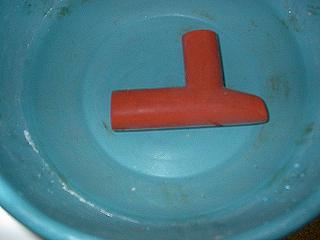

bowl in cold water to set wax
polished pipe
Immediately place the bowl in cold water to set the wax.
Dry and buff with a soft cloth. Make sure any patches of extra wax are removed from around the bowl entrance.

From This.......

To This.....

small pipe blank

polished pipe

OR
